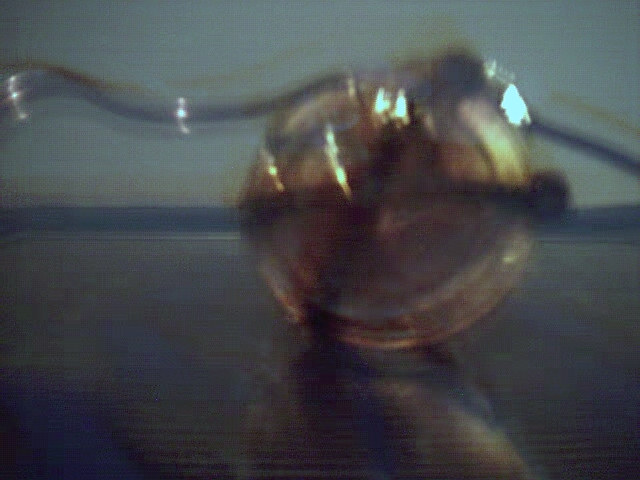

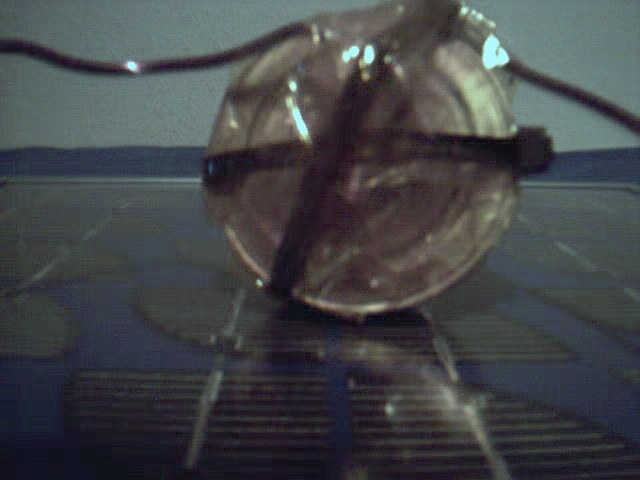

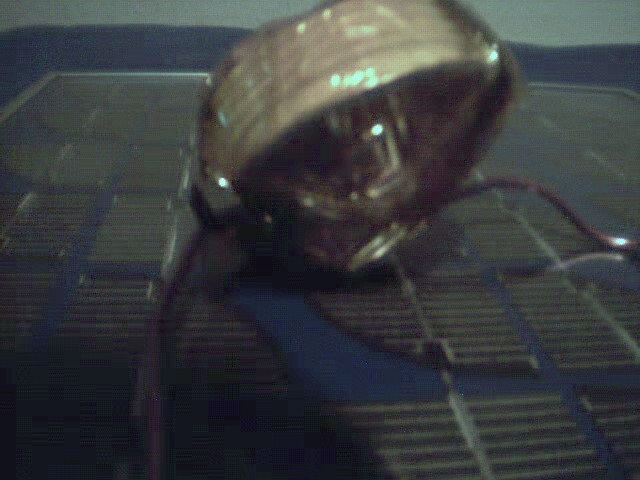

In these 3 different views of the 6000v 900amp Hockey puck Diode which is used to prevent any reverse voltage going back to the capacitor and damaging it, you can see just how large it is. The diode is wrapped in several layers of Kapton Polymide Tape, which each layer gives a insulation value of 7kv/perlayer.
